EL-DD-600 Double Door Magnetic lock , 600 lbs Holding Force For Each Door

More Views

EL-DD-600 Double Door Magnetic lock , 600 lbs Holding Force For Each Door

Regular Price: $169.99

Special Price $129.99

Availability: In stock

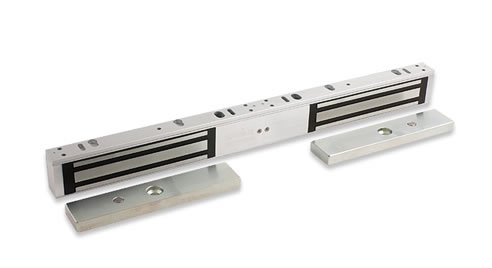

Double Door Magnetic lock , 600 lbs Holding Force For Each Door

Discount price and installation available for large quantity purchase.

Contact Lockchoice now at 8884520613 | 6263697788 or via email info@lockchoice.com

OR
Ask Product Question
Description

Details

All Magnetic Locks Include Manual, Armature Plate & Mounting Hardware For Basic Out-swing Applications

Lock Size: 508Lx50Wx25H(mm)
Armature plate: 180Lx38Wx11H(mm)
Holding Force: 280kg (600Lbs) For Each door
Voltage:DC12V or DC24V (adjustable)
Current Draw: 12V/500mA 24V/250mA
Signal Output: Dry Contact,Max Rating of Contact Current 3A
Suitable for: Wooden door , Glass door ,Metal door , Fireproof door.
Operating Temp: -20~+55℃
Suitable Humidity: 0~90%(non-comdensing)
Finishes for Shell: Anodized aluminum&surface texture processing
Finishes for Magnetic: Zinc
Finishes for Armature: Zinc
Weight: 2 kg
One-year warranty
All Magnetic Locks Include Manual, Armature Plate & Mounting Hardware For Basic Out-swing Applications
In-Swing applications of this maglock require brackets available above

Reviews
Attachments
View File Maglock Installation Steps Size: (1017.16 KB)
