BS-001 Single doors TCP/IP Access control + Power Supply + 12V Battery

More Views

BS-001 Single doors TCP/IP Access control + Power Supply + 12V Battery

Regular Price: $769.99

Special Price $469.99

Availability: In stock

Powerful IP Access Control System . Easy To Manage . Very High Security !

Discount price and installation available for large quantity purchase.

Contact Lockchoice now at 8884520613 | 6263697788 or via email info@lockchoice.com

OR
Ask Product Question
Description

Details

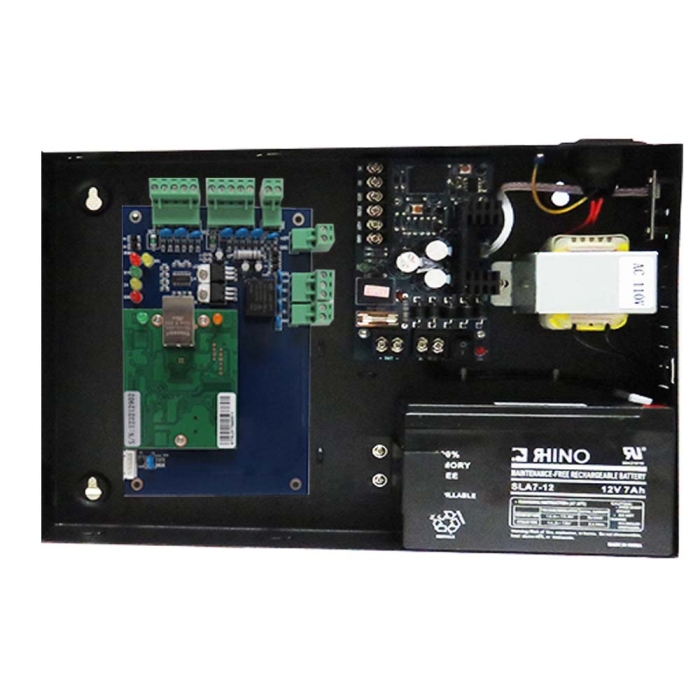

Package Including:
1 NU-05 Access Control Case and Power Supply case
1 BS-001 LC Security Single Door Access Control board
1 12V 7am Battery
1 System Software

BS-001 LC Security Access Control  Brief Description:
TCP/IP Single Door Control Panel
Communication: TCP/IP 10M/100M adaptive
Control 1 door, get in and out door by swiping card, or get in by swiping card and get out door by exit button
Power Supply: 12VDC 4-7A
Power Consumption of Circuit Board: Less than 100mA
Input Format of Reader: Wiegand 26 ID card
Quantity of Readers: 1 pair
Door opening time extending setting: 1-600 seconds(adjustable)
Operation Temperature: - 40 C~70 C
Quantity of users: 20,000 Users
Quantity of Event Buffers(offline): 100,000 event buffers
Max Distance from Reader to Controller: 130 yard .
Fire and alarm linkage: If no connection with the expansion board, only has software interface alarm, and drive the computer speaker. If connected with expansion board, is able to alarm by hardware, if connected with strengthened expansion board, then is able to Security alarm
Complsive open and close door at long time: Yes
Open door in remote distance: Yes
Anti pass back and tail: Yes
Multi-card open door: Yes
Open long time at specified time: Yes
Urgency locking: Yes
First card unlocking: Yes
Unlock based on internal and external validation: Yes
Keypad (Card , card+password, super password): Yes
Compatible with HID reader and card : Yes

Warranty One Year !

Reviews
Attachments
View File BS-001 Connection Diagram Size: (513.94 KB)
View File New IP Access Software Size: (50.46 MB)
