BS-SK7 Wireless Keypad & Card Reader Access Control System, IP66 + Wireless Exit Button + 12V DC Power Adapter + NJ320 Electric Strike

Special Price $249.99 Regular Price $329.99
In stock
SKU
BS-SK7 Wireless Keypad & Exit Button & Electric Strike

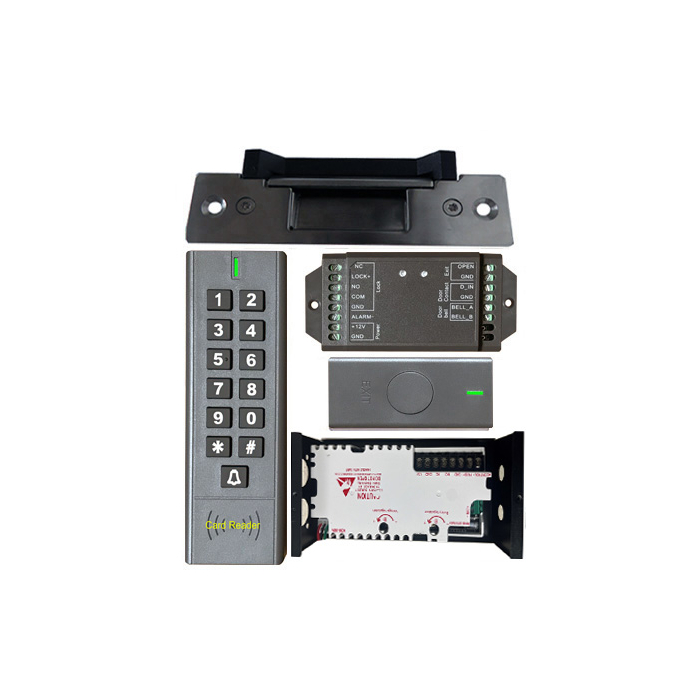

BS-SK7 Wireless Keypad & Card Reader Access Control System + Wireless Exit Button + 12V DC Power Adapter + NJ320 Electric Strike

Package Including:
1 BS-SK7 Wireless Keypad & Card Reader Access Control
1 BS-SK7 Wireless Mini Controller
1 BS-SK7 Wireless Exit Button
1 NJ-320 ANSI Electric Strike -NO/NC Adjustable
1 Nu-06 12V DC Adapter Controller with NO/NC

BS-SK7 Wireless Keypad & Card Reader Access Control :

Narrow Stile Dimensions: 5.3"H x 0.9"T x 1.9"W
Operating Voltage:  3 AAA Batteries ( Not included )
Weather and Waterproof . It is IP66
User capacity: 600 user maximum. (500 common user + 100 Visitor user)
100 Visitor User :  Set Up 1-9 Times to Open the Door .
Toggle Mode Available :  Set the Relay to On/Off Toggle Mode.
Door Bell Function : Available
Communication Frequency : 433 MHz
Communication Distance :  100 Feet Max
Working Current : <  80 mA
Operating Temperature: -40' F To 140' F
Operating Humidity : 10% to 90%
Weight : 150G
Communication Distance :  100 Feet Max
Working Current : <  80 mA
Operating Temperature: -40' F To 140' F
Operating Humidity : 10% to 90%
Weight : 150G

BS-SK7 Wireless Mini Controller :

Dimensions: 3.4'L x 2' W x 1' D (Inch)
Input Voltage: 12V DC
Communication Frequency : 433 MHz
Communication Distance :  100 Feet Max
Working Current : < 50 mA
Pairing Wireless Keypad : 5 Max
Pairing Wireless Exit Button : 5 Max
Weight : 62G

BS-SK7 Wireless Exit Button Features:

Dimension: 3.15'L x 1.89'W x 0.6'H ( Inch )
Power : 1 unit of 2032 Lithium Battery
Communication Frequency : 433 MHz
Communication Distance: 100 Feet Max
Working Current :  < 30mA
Weight : 34G
Base On 20 times Per day , It can work about one year .

Nu-06 12V DC Adapter Controller with NO/NC :

Dimensions: 4.7'L x 3.7' W x 1.5' H (Inch)
Input Voltage: 110VAC~260VAC;50HZ~60HZ
Output Voltage: 12VDC; 3A
Output Contact: Access control, Electric Lock, Release Button
Time Relay: 0~15sec.
Standard Designe: Steel material, Painted
Protect Safely: Short Circuit protection
Suitable For : Access control, Electric lock

NJ-320B ANSI HEAVY DUTY ELECTRIC STRIKE:

Rugged electric door strike that accepts cylindrical latches, Use this in place of a standard door strike when you are using an outside keypad, prox card reader, or fingerprint reader. It is widely used in the industry, and is commercial-duty.

ANSI, CE, MA Certified
Manufacturer tested to over 1,000,000 cycles
For use on Metal/Aluminum/Wood frames
Lock Size: 4.88Lx1.25Wx1.46H(Inch)
Holding Stength: 1500 lbs
Fail-safe , Fail-Secure type adjustable Click here to see How to adjust
Voltage: 12VDC. Current: 220mA
Suitable Temperature: -20~+55℃
Bolt structure: Stainless Steel
Bolt Housing: Stainless steel,Draw the Polishing of silk
Face plate Housing: Painted Steel
Function: Built-out MOV

One Year Warranty
